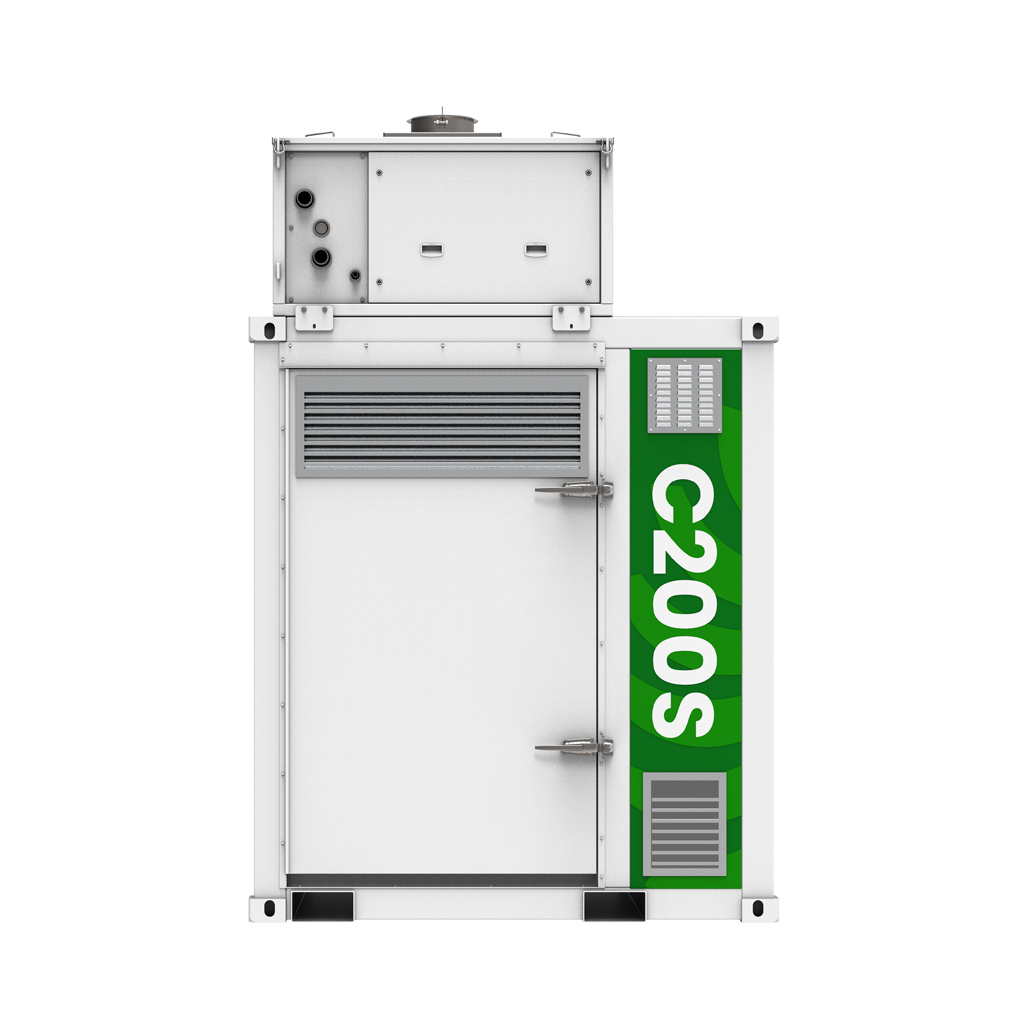

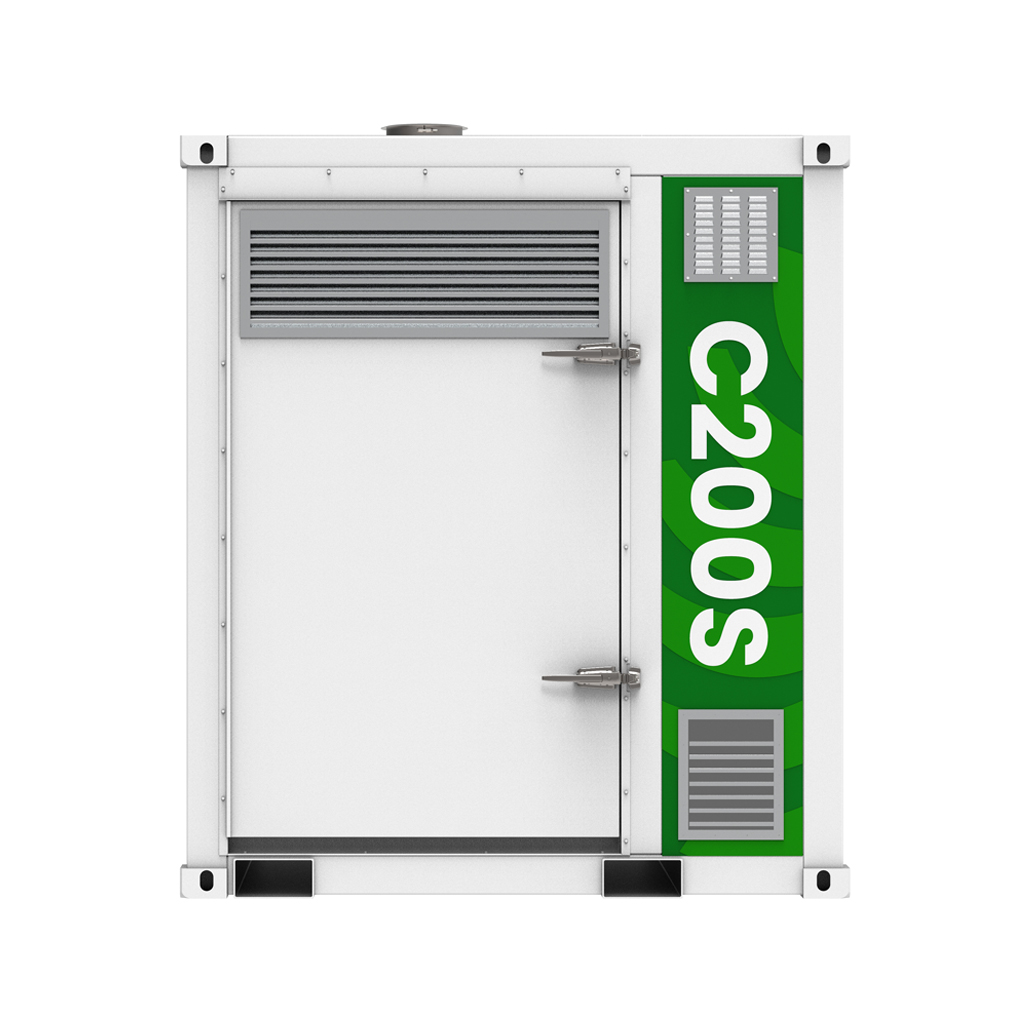

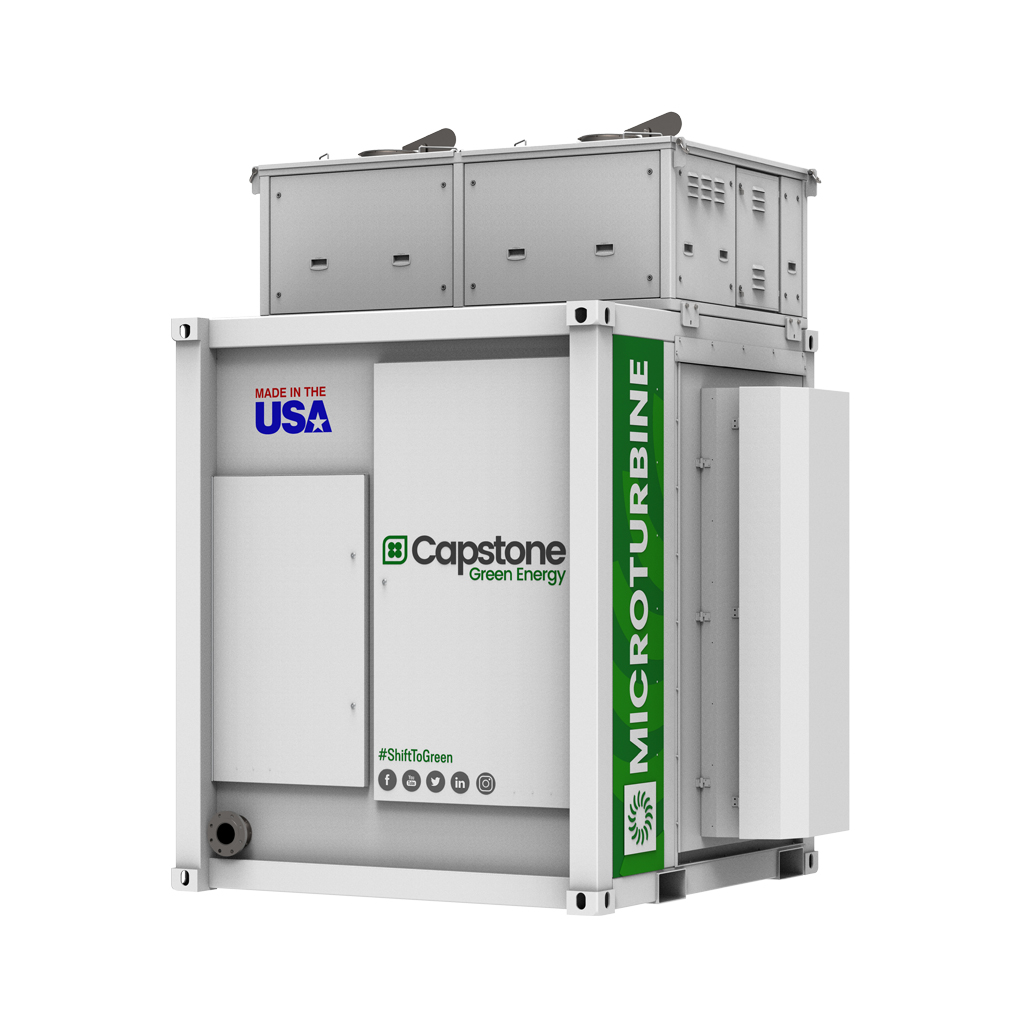

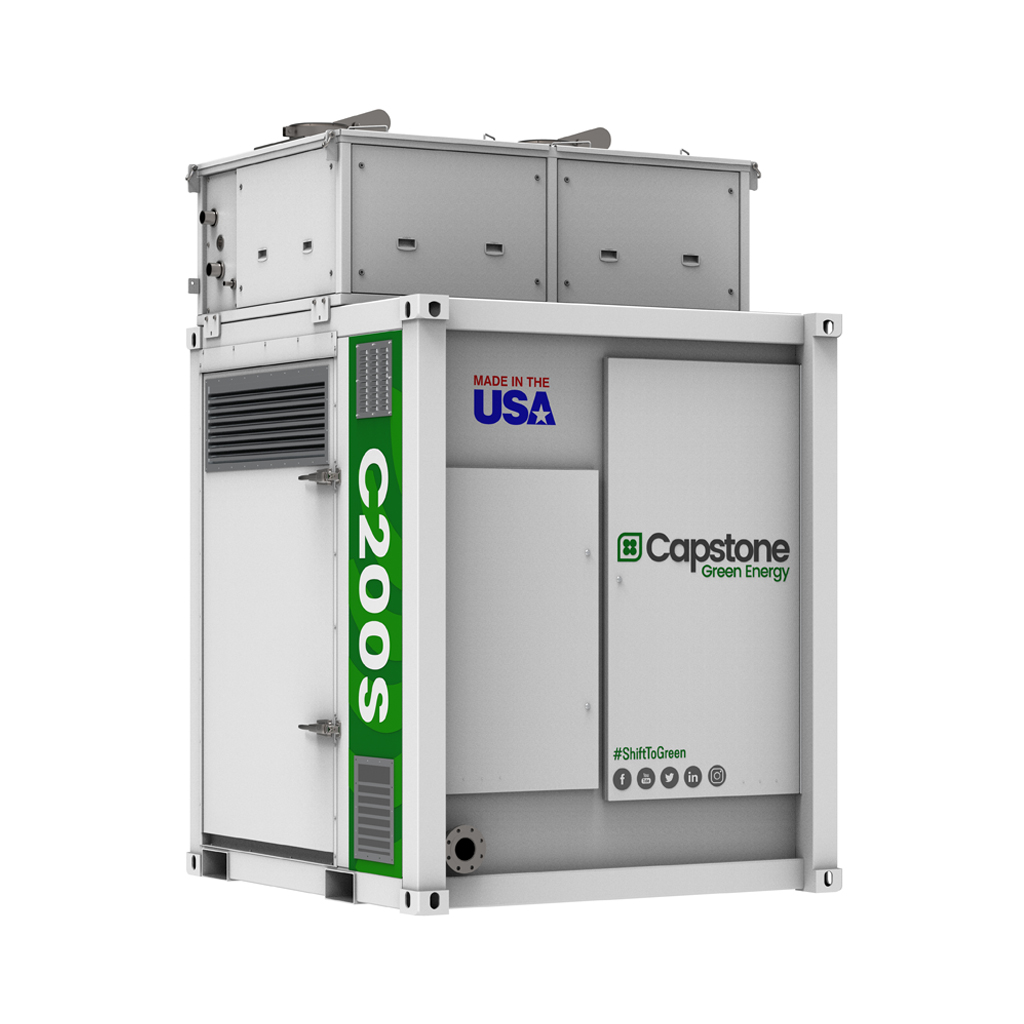

Microturbine c200S
The C200S provides up to 200kw of electric power and contains the world’s largest single-unit air bearing microturbine. Achieve ultra-low emissions and reliable electrical generation from digester gas.
- Ultra-low Maintenance
- No Oil Consumption or Disposal
- Fuel Flexibility
- Inverter Based Power Electronics
- Clean Exhaust Emissions
Specification
|
Rating:
|
200 kW Electrical
|
|---|---|
|
Electrical Efficiency LHV:
|
33%
|
|
Combined Heat And Power Efficiency:
|
Up to 90%
|
|
Voltage:
|
400-480 VAC
|
|
Frequency:
|
50/60 Hz, Grid Connect
|
|
Electrical Service:
|
3-Phase, 4-Wire Wye
|
|
Width:
|
3.0 m (117 in)
|
|
Depth:
|
2.5 m (100 in)
|
|
Heigth:
|
3.8 m (148 in)
|
|
Weigth:
|
Grid Connect – 6,000 kg (13,200 lbs); Dual Mode – 6,700 kg (14,700 lbs)
|
|
Net Heat Rate LHV:
|
10.9 MJ/kWh (10,300 BTU/kWh)
|
|
Exhaust Temperature:
|
280 ºC (535ºF)
|
|
Exhaust Gas Flow:
|
1.3 kg/s (2.9 lbm/s)
|
|
Compatible Fuels:
|
Pipeline Natural Gas
|
